Product Details:
Payment & Shipping Terms:
|
Product Name: | KEMING Mixing Concrete Pump Machine | Capacity: | 25m3/h |
---|---|---|---|
Outlet Opening Diameter: | 150mm | Max. Horizontal Delivery Distance: | 100-200M |
Brand: | HENAN KEMING | After-sales Service Provided: | Online Support |
High Light: | 25m3/H Dry Mix Shotcrete Machine,150mm Outlet Dry Mix Shotcrete Machine,Hydraulic Dry Mix Shotcrete Machine |

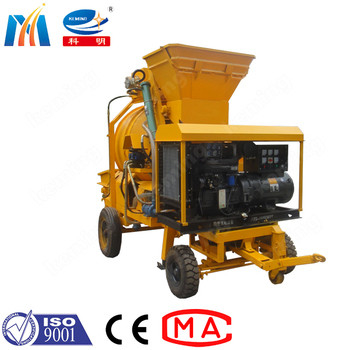

1. Mxing Concrete Pump machine combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
2. Concrete mixer pump machine has double cylinder hydraulic pump system with reliable performance.
3. Concrete Mixer Pump machine spare parts are from high quality products of famous brand.
1. compact structure, flexible movement, easy operation and simple maintenance.
2. remote control with high automatic degree and easy operation, saving labor cost.
3. independent mixing system with even mixing performance and high working efficiency.
4. double cylinder hydraulic pump system with high pumping speed and high working efficiency.
5. advanced S-tube distribution valve, well sealing techinc, good sealing performance.
Items | Unit | Parameters | |||||
KBT2506/JZM450 | KBT2506/JZM350 | KBT2006/JZM300 | KBT20/JZC350 | KBT0804/JZC200 | |||
Capacity | m3/h | 25(18) | 25(18) | 20(13) | 20(15) | 8(6) | |
Max. aggregate size | mm | 40 | 40 | 40 | 40 | 30 | |
Delivery pipe | mm | DN125 | DN125 | DN125 | DN125 | DN125 | |
Max. dist | horizontally | m | 200 | 200 | 150 | 150 | 100 |
vertically | m | 80(60) | 80(60) | 60(40) | 60(40) | 30 | |
Mixer type | JZM450 | JZM350 | JZM300 | JZC350 | JZC200 | ||
Charge hopper | L | 720 | 560 | 500 | 560 | 300 | |
Discharge hopper | L | 450 | 350 | 300 | 350 | 200 | |
Diameter of drum | mm | 1550 | 1440 | 1260 | 1440 | 1000 | |
Output pressure | Mpa | 6-8 | 6-8 | 5-8 | 5-8 | 3-5 |
