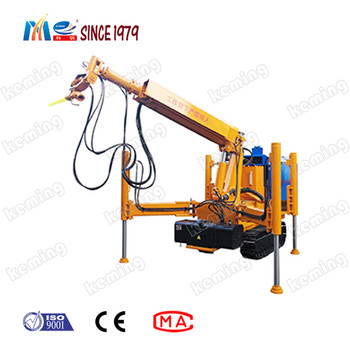

| Product Name: | KPC6-8A Shotcrete Robot | Type: | Wet Shotcrete Dry Shotcrete |
|---|---|---|---|
| Model: | KPC-6A, KPC-8A | Usage: | Tunnel, Mining And Slope Protection |
| Key Words: | Robotic Shotcrete Machine | ||
| High Light: | Wet Dry Robotic Shotcrete Machine,Remote Control Shotcrete Machine,Tunnel Mining Shotcrete Machine |
||
1. Robotic shotcrete machine is suitable for dry, wet or wet and dry mixing.
2. It has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.
3. It is the perfect concrete spraying system of tunnel, mining and slope protection.
1. Shotcrete robot can be used for slope stability, excavation, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. It is an ideal equipment for any working space, even in narrow tunnel construction.
|
Parameter |
KPC-6A |
KPC-8A |
|
|
Max. operation length |
7000 |
8400 |
|
|
Outrigger expansion width |
2300 |
2500 |
|
|
Support shotcrete capacity m3/h |
0-10 |
0-25 |
|
|
Boom |
Max. spraying H |
6.2m |
8.2m |
| Max. spraying W | 7m | 11m | |
|
Hose id |
51/57/64mm |
||
|
Arm frame telescopic dis. |
2.35m |
2.7m |
|
|
Boom expansion max. L |
3.5m |
6m |
|
|
Chassis |
Max. walk gradient |
20% |
25% |
|
Walking speed |
0.6km/h |
0.5km/h |
|
|
Ground dis. |
150mm |
390mm |
|
|
Power |
Hydraulic system output |
7.5kw |
11kw |
|
Voltage |
380-1140V |
||
