Product Details:
Payment & Shipping Terms:
|
| Max Aggregate Size: | 20mm | Warranty: | 1 Year |
|---|---|---|---|
| Weight: | 2400 Kg | Hose Inner Diameter: | 51,57,64 Mm |
| Voltage: | Customized | Dimension(l*w*h): | 2500x900x1680 Mm |
| Condition: | New | After-sales Service Provided: | Instruction Book, Online Support |
| Certification: | CE, ISO, MA | Color: | Yellow, Customized |
| High Light: | Remote Control Shotcrete Robot,6m Spraying Shotcrete Robot,Narrow Tunnel Construction Shotcrete Robot |
||

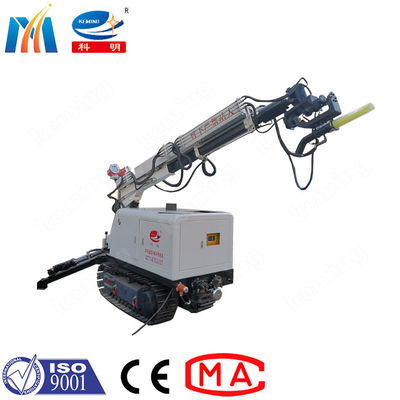

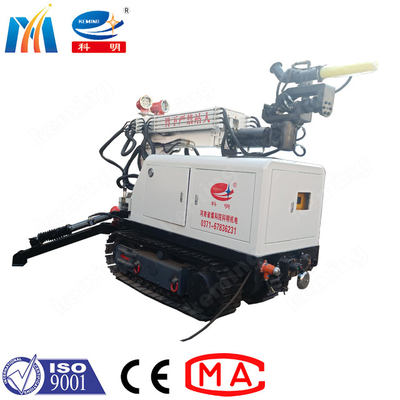

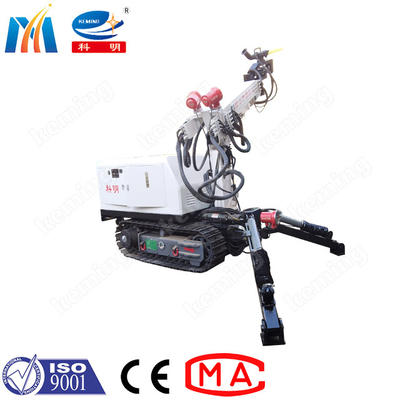

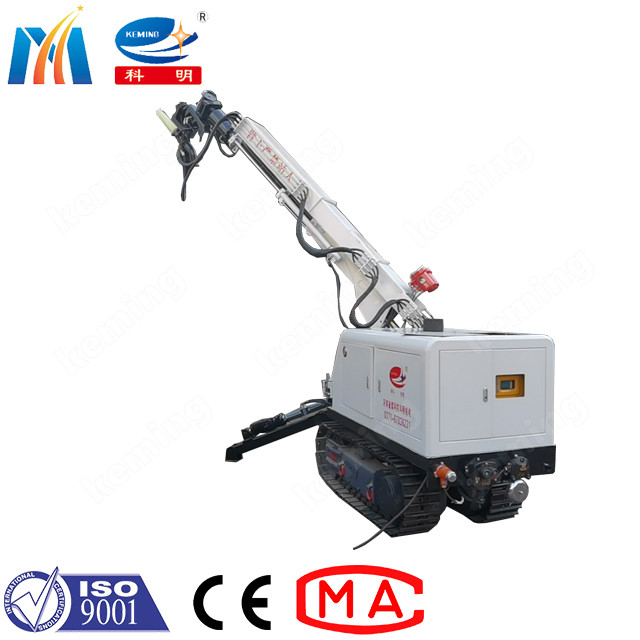

6m Spraying Height Remote Control Smaller Shotcrete Robot Flexible Concrete Shotcrete Arm
Application:
1. KPC-6A Shotcrete robot is an ideal equipment for any working space, even in narrow tunnel construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. It can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
Features:
1. Concrete spray is suitable for dry, wet or wet and dry mixing.
2.independent hydraulic drive, 2 hydraulic legs, greatly improving the stability of the equipment during the spray process.
3. The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4. unique protective cover, can protect the robot arm.
Specification:
| whole machine | model | KPC-16A shotcrete machine |
| total length | 7850mm | |
| total width | 2460mm | |
| total height | 3380mm | |
| rated weight | 16t | |
| minimum turning radius | 22mm | |
| maximum gradeability | 15° | |
| maximum aggregate particle size | ≤16mm | |
| boom and support | boom structure | 2 sections of telescopic boom ≥8.4m |
| lift height | retraction length 3.4m | |
| prostrate height | 16m | |
| boom rotation angle | -2m | |
| axle steering angle of spray nozzle | 320° | |
| vertical steering angle of spray nozzle | 360° | |
| swing angle of spraying nozzle | 240° | |
| center width of front leg cylinders | 2180mm | |
| center width of rear leg cylinders | 2180mm | |
| center distance between front and rear leg cylinder | 5030mm | |
| control type | full remote control | |
| driving mode | diesel engine or electrical engine | |
| pumping system | driving mode | electrical engine |
| motor rated power | 55 kw | |
| motor voltage | 380v | |
| hopper volume | 0.4m3 | |
| concentrate | 30m3/h | |
| inner diameter of delivery cylinder | 160mm | |
| effective stroke of delivery cylinder | 1000mm | |
| concrete discharge pressure | 10MPa | |
| max. theoretical capacity of accelerator pump | 9 L/min | |
| max. theoretical discharge pressure of accelerator pump | 1.8 MPa | |
| delivery pipe diameter | 125-80mm, reducer pipe | |
| spraying nozzle diameter | 50mm | |
| truck chasis | diesel engine | 4105 turbo charged diesel engine |
| engine power | 96-115 kw | |
| wheel base | 5100mm | |
| front axle wheel base | 1940mm | |
| rear axle wheel base | 1860mm | |
| tyre | 1000 steel wire tyre | |
| fuel tank volume | more than 160L |
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
