Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

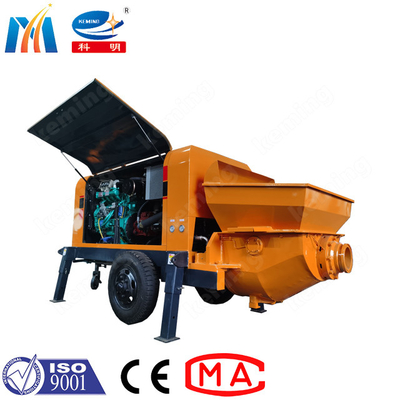

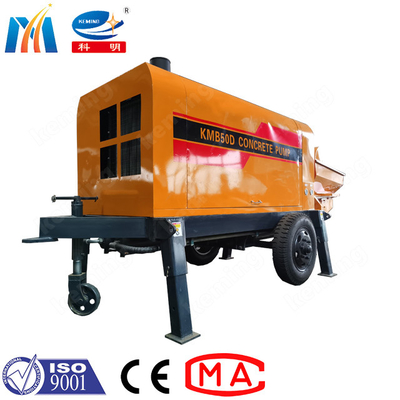

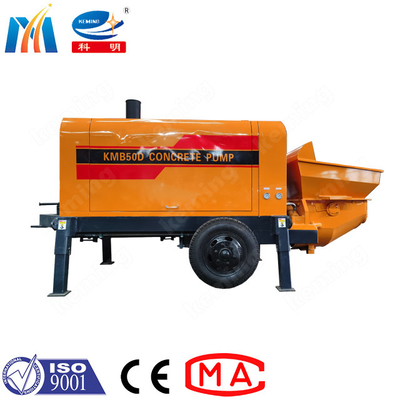

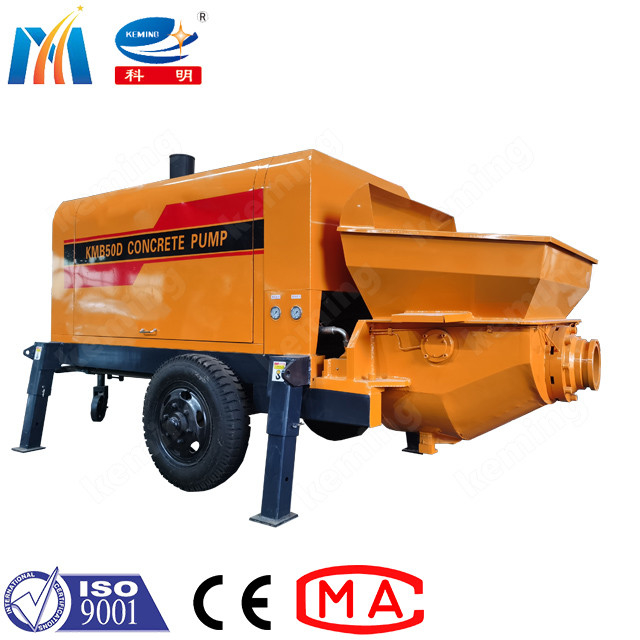

Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction

Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction
Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction

Large Image :  Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KMB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Weight: Different Model Different Weight Condition: New
Power Type: Diesel Engine Warranty: 12 Month
After-sales Service Provided: Instruction Book Power(w): 15-55kw
Color: Customized Name: Concrete Pump
High Light:

S Tube Shotcrete Concrete Pump

,

Diesel Engine Shotcrete Concrete Pump

,

Tunnel Construction Shotcrete Concrete Pump

30m Conveying Tube Diesel Concrete Pump Shotcrete Pumping Machine For House Foundation



Application:

Concrete pump have wide applications in construction and other civil municipal administration.
1. Civil construction: small civil construction, township construction, new rural construction;
2. Tunnel construction: construction of diversion tunnels, mine tunnels, railway tunnels, highway tunnels, etc.;
3. Mine operations: underground support and backfilling operations in coal mines, phosphate mines, iron ore, copper mines and other resource mines;
4. Water conservancy and hydropower projects;
5. Border control of geological disasters, foundation pipe piles;
6. Construction sites where various types of space are narrow or the amount of concrete pouring is not large.



Features:

1. Optimal design of the hopper. low resistance parabolic S tube. suction excellent performance;
2. Configuration with a large row of imported most open pump and hydraulic components imported.
3. With Relay-based integrated electronic control system, simple and reliable, more user-friendly design; surfacing Shaped glasses plate, cutting ring is not only high hardness, and repair. use and low cost.
4. Can also choose the high life of carbide cutting ring plate glasses. Well-designed open.
5. Double-circuit hydraulic system, for the small impact: can lift guide rollers.



Specification:

Items Unit Parameter
KMB-50 KMB-40 KMB-30 KMB-20 KMB-10 KMB-8
Capacity m3/h 50(30-34) 40_25-30) 30(20-25) 20(15) 10(8) 8(6)
Max. aggregate size mm 40 30 20 20 25 15
Delivery pipe mm DN150/DN125 DN125/DN100 DN125/DN100 DN125/DN100 DN100/DN80 DN80
Max. dist horizontal m 300 300 300 200 150 50
vertical m 100/80 100/80 80/60 40 60 20
Diesel engine KW 84 56 44 40 40 none
Main oil pump   140 double 140/112 double 112/80 double 80 50 40
Cylinder diameter   200 180 140 120 140 120
Motor power KW 55 45 37 22 22 15/11
OutPut pressure Mpa 8-13 8-13 6-8 5-8 5-8 3-5



Certification:

In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 0Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 1Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 2



Why choose us:

Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 4Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 5

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.



Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 6Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 7

Exhibition:

Bauma Shanghai 2018

Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 8Diesel Engine S Tube Shotcrete Concrete Pump 55kw Tunnel Construction 9

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
