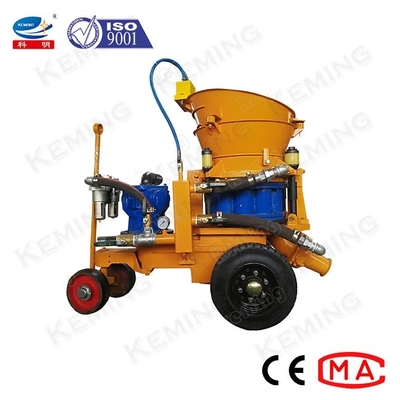

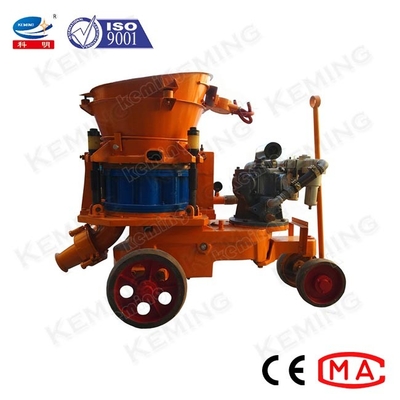

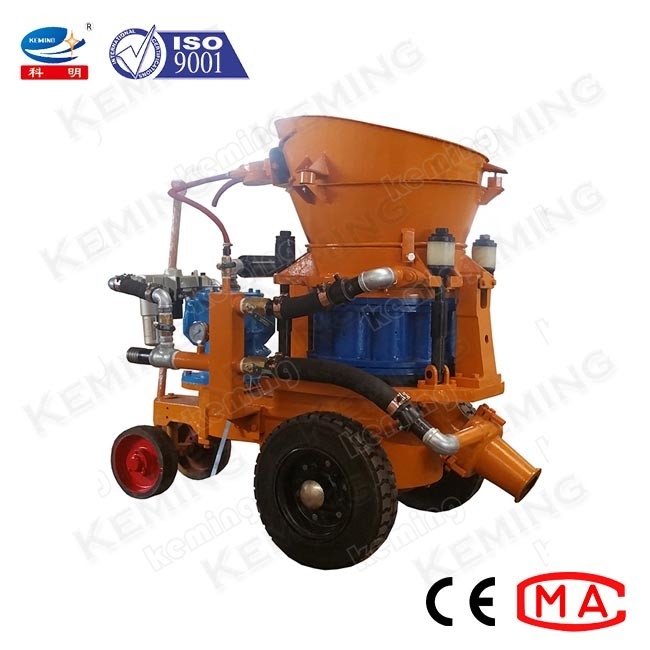

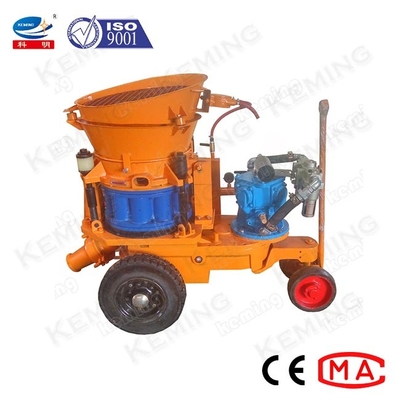

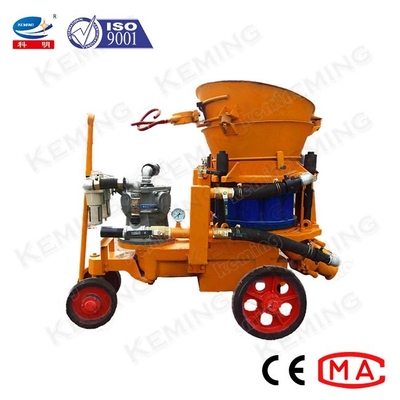

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine
Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine

Large Image :  Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KPZ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1500-2300 per set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Keywords: Pneumatic Shotcrete Machine Application: Mining Engineering
Color: Customized Certification: CE, ISO, MA
After-sales Service Provided: Online Support Condition: New
Dimension(l*w*h): Vary With The Model Voltage: Customized
Warranty: 12 Month
High Light:

Mining Engineering Pneumatic Shotcrete Machine

,

MA Concrete Spraying Machine

,

3M3/H Concrete Spraying Machine

China KPZ Series Pneumatic Shotcrete Machine Concrete Spraying Machine For Mining Engineering



Application:

1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
2. New dust removal technology and filter material, with good filtering effect and long service life.
3. Drawer-type dust container, convenient to clean.
4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.



Features:

The pneumatic shotcrete machine does not need any power source, which enhances safety and reduces the labor intensity of workers. It is widely used in mine shaft engineering, tunnel engineering, water conservancy, hydropower engineering, slope maintenance and municipal construction engineering, etc.
Features of Pneumatic Shotcrete Machine
1. Do not use power, directly use compressed air as the power source, which greatly saves the preparation time for spraying;

2. The air intake system adopts a quick connection device, which is more convenient to operate;

3. The inlet and outlet of the material have been enlarged and improved, so that the continuity of the concrete material is more guaranteed;

4. Small size, reasonable structure and easy to move.



Specification:

More information, pls feel free to contact us.

Model KPZ-3A KPZ-4A KPZ-5A KPZ-7A KPZ-9A
Output 2~3 m3/h 3.5~4.5 m3/h 4.5~5.5 m3/h 5.5~6.5 m3/h 6.5~7.5 m3/h
Max.conveying dist. 250 m 230 m 200 m 150 m 100 m
Max.aggregate size 15 mm 18 mm 20 mm 20 mm 20 mm
Hose inner diameter φ42/51 mm φ51 mm φ51 mm Φ57 mm/φ51 mm Φ57 mm/φ64mm
Air consumption 5 m3/min 8 m3/min 8 m3/min 9 m3/min 9 m3/min
Motor power 6 m3/min 8 m3/min 8 m3/min 9 m3/min 9 m3/min
Rated working pressure 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa



Company information:

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 0

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.

Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 1Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 2Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 3

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 4Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 5

Related machines:

Our main machines are : Shotcrete equipment, grouting equipment, mixing equipment, plastering equipment, hose pump etc.

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 6Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 7Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 8

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 9Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 10Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 11

Exhibition:

Bauma Shanghai 2018

Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 12Mining Engineering Pneumatic Shotcrete Machine MA Concrete Spraying Machine 13

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
