Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsDry Mix Shotcrete Machine

Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

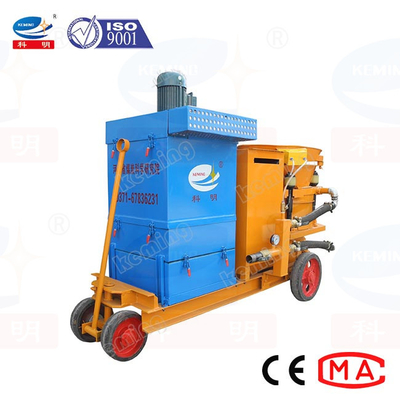

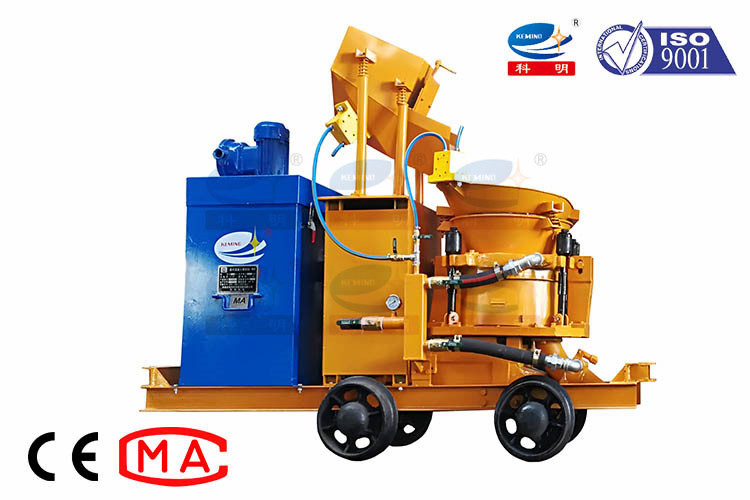

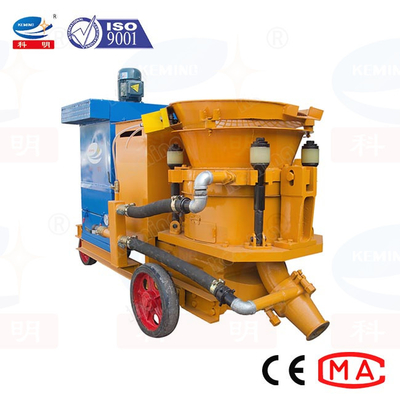

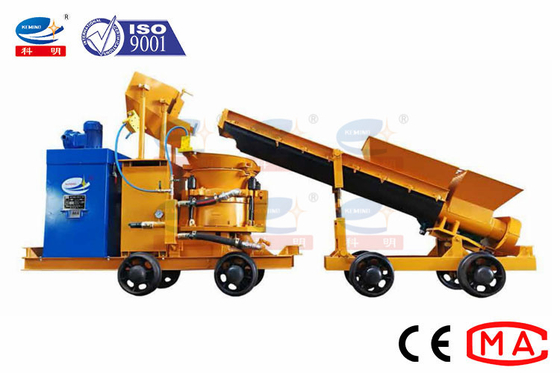

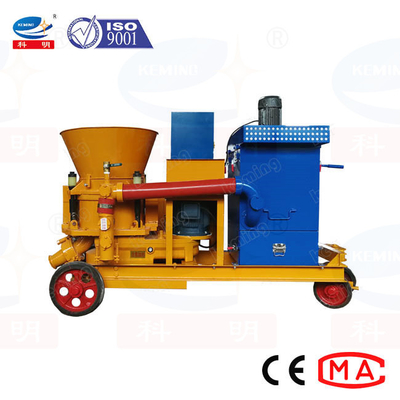

Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting

Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting
video play

Large Image :  Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KCPZ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/P, D/A, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Keywords: Dedusting Shotcrete Machine Application: Slope Supporting
Color: Customized Certification: CE, ISO, MA
After-sales Service Provided: Operation Instruction Condition: New
Dimension(l*w*h): Vary With The Model Voltage: 380V, 440V , Customized
Warranty: 1 Year Product Name: Shotcrete Machine
High Light:

Wheeled Dust Collection Shotcrete Machine

,

Dry Gunite Shotcrete Machine

,

Slope Supporting Shotcrete Machine

Wheeled Dust Collector Dry Gunite Concrete Machine Shotcrete Machine For Malaysia Slope Supporting Project

Application:
1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
2. New dust removal technology and filter material, with good filtering effect and long service life.
3. Drawer-type dust container, convenient to clean.
4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.


Features:
1. KCPZ Dedusting Shotcrete Machine obtains the Invention Patent and Utility Model Patent.
2. The machine structure and spraying nozzle have new designs. New environmental shotcrete machine, less environmental pollution (less than 90% of dust pollution of traditional machine), less harm to workers’ health.
3. New spraying nozzle device, even concrete mix, low rebound rate. Adding accelerator automatically and evenly, saving labor.
4. Compact machine structure, simple operation, suitable for concrete operation in narrow space.

Specification:

Capacity4~5m3/h5~6m3/h
Delivery distance 200m/40m (horizontal/vertical)100m/30m (horizontal/vertical)
Max. aggregate size≤18mm≤20mm
Delivery pipe ID.φ51mmφ51mm/φ57mm
Air consumption≥7m3/min≥8m3/min
Dust concentration≤15mg/ m3≤15mg/ m3
Main motor power5.5 kW7.5 kW
Auxiliary motor power1.1kW1.1kW
Capacity of accelerator adding hopper25kg25kg


Company information:
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 0

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 1Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 2Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 3
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 4Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 5
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace


Related machines:
Our main machines are : Shotcrete equipment, grouting equipment, mixing equipment, plastering equipment, hose pump etc.
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 6Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 7Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 8
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 9Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 10Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 11
Exhibition:
Bauma Shanghai 2018
Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 12Wheeled Dust Collection Dry Gunite Shotcrete Machine For Slope Supporting 13
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us , will choose the most suitable machines for you !
