Product Details:
Payment & Shipping Terms:
|
| Air Consumption: | 7-8 M3/h | Max Aggregate Size: | 20mm |
|---|---|---|---|
| Warranty: | 1 Year | Hose Inner Diameter: | 50mm |
| Voltage: | Customized | Condition: | New |
| After-sales Service Provided: | Instruction Book, Online Support | Certification: | CE, ISO, MA |
| Color: | Yellow, Customized | Application: | Shotcrete Project |
| Capacity: | 5-7 M3/h | Product Name: | JPS71L Self -loading Shotcrete Machine |
| High Light: | Self Loading Concrete Shotcrete Machine,7m3/H Gunite Machine,50mm Hose Gunite Machine |
||

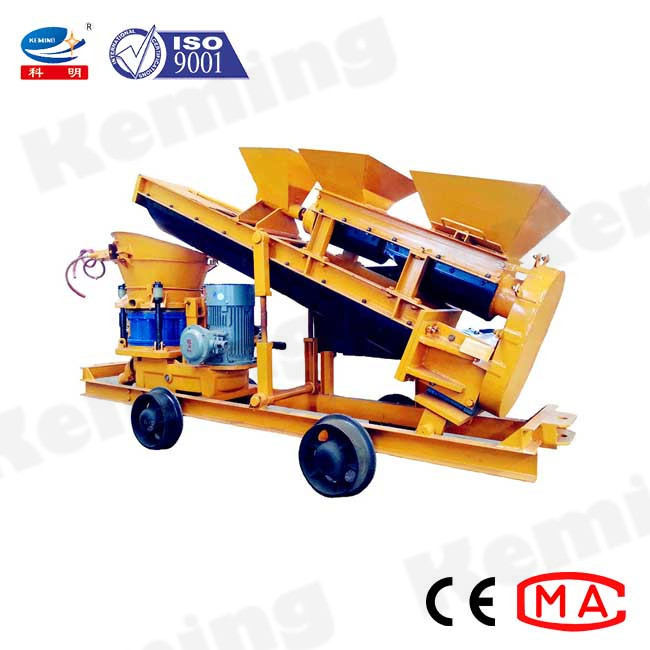

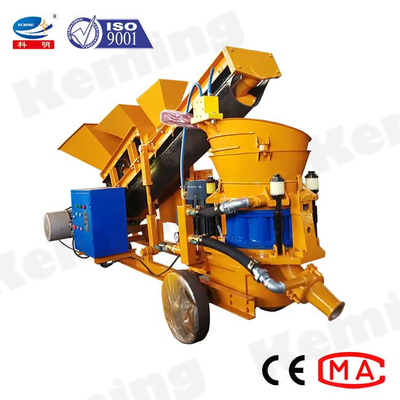

JPS71L Self -Loading Shotcrete Machine Dry Concrete Shotcrete Gunite Machine 7m3/H
Application:
JPS7I-L Shotcrete Machine is composed of the feeding screw system, driving system, rotor assembly, air system, spraying system, electric control box, etc.
It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.
The machine is widely used in concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
Dry shotcrete machine: The sprayed material (concrete, cement, etc.) added to the hopper is dry. Pressure is applied by an air compressor to deliver the dry material to the nozzle. There is a water inlet pipe at the nozzle and the dry material is in the nozzle. The place is mixed with water and sprayed out. This type shotcrete gunite machine is combined with the screw type feeder.
Introduction:
Shotcrete Machine is composed of the feeding screw system, driving system, rotor assembly, air system, spraying system, electric control box, etc.
It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.
The machine is widely used in concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
Specification:
| items | unit | technical parameters |
| model | JPS71L self -loading shotcrete machine | |
| capacity | 5-7 | |
| conveying distance | 70/20 | |
| suitable water and cement ratio | ＞0.3 | |
| addictive ratio of powdery accelerator | 3%-7% | |
| aggregate size max. | mm | ≤20 |
| conveying pipe ID | mm | 51 |
| operating pressure | MPa | 0.2-0.5 |
| system air pressure | MPa | ≥0.5 |
| air consumption | m3/min | ≥10 |
| material feeding height | m | 1.1 |
| motor type | kw | 5.5/7.5 |
| voltage | v | 380/660 or 660/1140 |
| machine gauge | mm | 600(900) |
| dimension(LxWxH) | mm | 3179x820x1900 |
| total weight | kg | 1150 |
Certification:
In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification. In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us :
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Exhibition:
Bauma Shangha 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?

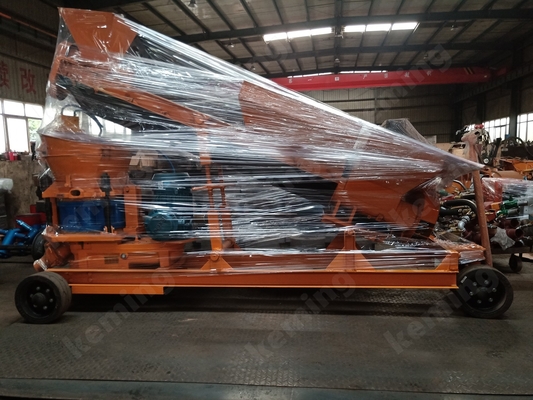

A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us will choose the most suitable machines for you!
