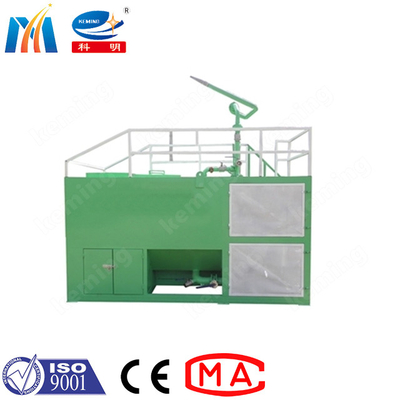

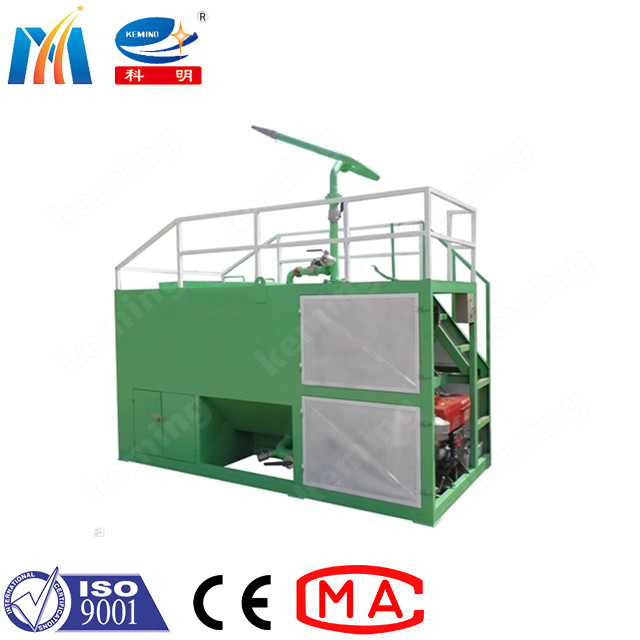

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying
Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying

Large Image :  Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KKP series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Voltage: Customized Condition: New
Weight: Vary With The Model Dimension(l*w*h): Vary With The Model
Warranty: 12 Month Color: Customized
Product Name: Grass Seeding Machine Application: Mountain Slope Supporting Project
High Light:

60kw Diesel Grass Seeding Machine

,

800m2 Spraying Grass Seeding Machine

,

Soil Spraying Hydroseeding Machine

Diesel Engine Grass Seeding Machine Hydroseeding Machine For Mountain Slope Supporting



Performance characteristics:

1) Stirring uses a combination of spiral blade stirring and reflux scouring stirring to form three-dimensional stirring;

2) Driven by a single diesel engine or two diesel engines, easy to operate and maintain, and low fuel consumption;

3) 360°rotating universal sprinkler head, equipped with combined sprinkler head and guide pipe valve, which is convenient for the replacement of the working surface; at the same time, it has a dual spray gun position structure, which is suitable for different types of construction sites;

4) Our factory can customize different tank capacity, external dimensions and horsepower according to customer needs;



Product advantages:

1) Special high-pressure mud pump, wide blade path, not easy to jam the pump; the mud pump has a large flow rate and high working efficiency (such as 6 cubic meters and 15 minutes can complete a spraying);

2) This equipment can add a proper amount of grass fiber and a large amount of rice husks and sawdust to increase the adhesion of the mud, which has a significant effect on spraying high and steep slopes;

3) There are two types of guest soil sprayers, mechanical and hydraulic, which can be determined according to the customer's operating habits. The mixing mode of the guest soil sprayer is divided into two forms: mechanical and hydraulic; the machinery has a double chain double gear box (powered by a single diesel engine) and a single gear box (powered by two diesel engines, which is more fuel-efficient). The hydraulic adopts a plunger motor as the main drive actuator, with a hydraulic oil tank of about 180L (the factory hydraulic oil has been filled), and a hydraulic radiator is also equipped;

4) Part of the equipment equipped with a single-stage pump can add an appropriate amount of grass fiber, a large amount of rice husk, and sawdust to increase the adhesion of the mud, which has a significant effect on spraying high and steep slopes;

5) The pump feed pipe of the high pressure mud pump can be selected as a double pipe to increase the feed speed and spraying speed;

6) Now we have a special high-pressure single-stage pump (high cost performance, low cost of later accessories) and multi-stage pumps for the core pump of the guest soil spraying machine. The parabola has a range of 30-90m, which can be selected by customers;

7) The mixing shaft adopts composite floating palace seal, which has fast after-sales maintenance and low cost.

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 0The high-power mud pump has high outlet pressure and strong wear resistance.

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 1Large flow, large torque motor, mixing more evenly.



Certification:

Small soil spraying machine (single diesel engine)
Model (four-cylinder diesel engine) KKP-6060 KKP-7082
Tank capacity (m³) (6) (7,6)
Diesel engine power(kw) 60 82
Stirring form Mechanical Mechanical (hydraulic)
Single tank spraying area 200-800㎡ 200-800㎡
Single tank spray thickness 0.5—5cm 0.5—5cm
Direct range (m) Horizontal distance30-38 Horizontal distance35-50
Vertical distance15-25 Vertical distance18-30
Induction pipe head (m) Horizontal distance50-120 Horizontal distance60—150
Vertical distance25-40 Vertical distance30-60
Middle soil spraying machine (single diesel engine)
Model (six-cylinder diesel engine) KKP-80125 KKP-80132 KKP-80132
Power part 125kw 132kw 132kw
Mixing Mechanical/Hydraulic Mechanical/Hydraulic Mechanical/Hydraulic
Direct range Horizontal distance55-80m Horizontal distance55-75m Horizontal distance50-85m
Vertical distance28-38m Vertical distance28-35m Vertical distance30-40m
Induction tube head Horizontal distance90-190m Horizontal distance80-180m Horizontal distance100-200m
Vertical distance 40-65m Vertical distance 38-60m Vertical distance 40-80m
Transmission form Mechanical clutch Mechanical clutch Mechanical clutch
Tank volume 8(7 ,6)m³ 8(7 ,6)m³ 8(7 ,6)m³
Single tank spraying area 200—800㎡ 200—800㎡ 200—800㎡
Single tank spray thickness 1—5cm 1—5cm 1—5cm
Model (six-cylinder diesel engine) KKP-80231 KKP-80166 KKP-80177
Power part 231kw 166kw 177kw
Mixing Mechanical/Hydraulic Mechanical/Hydraulic Mechanical/Hydraulic
Direct range Horizontal distance55-95m Horizontal distance55-90m Horizontal distance55-90m
Vertical distance30-55m Vertical distance30-48m Vertical distance30-50m
Induction tube head Horizontal distance114-220m Horizontal distance110-210m Horizontal distance100-215m
Vertical distance55-100m Vertical distance45-85 Vertical distance50-90m
Transmission form Mechanical clutch Mechanical clutch Mechanical clutch
Tank volume 8(7 ,6)m³ 8(7 ,6)m³ 8(7 ,6)m³
Single tank spraying area 200—800㎡ 200—800㎡ 200—800㎡
Single tank spray thickness 1—5cm 1—5cm 1—5cm
Large soil spraying machine (Double diesel engine)
Model KKP-80145(KKP-80165) KKP-80152(KKP-80172)



Power part

Pumping power—125kw

Mixer power—20kw (or 40kw)

Pumping power—132kw

Mixer power—20kw (or 40kw)

Mixing Independent control can be achieved at any time Independent control can be achieved at any time
Direct range Horizontal distance60-82m Horizontal distance60-86m
Vertical distance29-39m Vertical distance30-42m
Induction tube head Horizontal distance95-200m Horizontal distance110-210m
Vertical distance42-65m Vertical distance42-80m
Transmission Mechanical clutch Mechanical clutch
Tank volume 8m³ 8m³
Single tank spraying area 200—800㎡ 200—800㎡
Single tank spray thickness 1—5cm 1—5cm
Model KKP-80186 KKP-80251(KKP-80271)
Power part

Pumping power—166kw

Mixing power—20kw

Pumping power—231kw

Mixing power—20kw (or 40kw)

Mixing Hydraulic/mechanical, independent control can be achieved at any time Hydraulic/mechanical, independent control can be achieved at any time
Direct range Horizontal distance60-110m Horizontal distance65-110m
Vertical distance30-55m Vertical distance35-60m
Induction tube head Horizontal distance114-230m Horizontal distance120-240m
Vertical distance43-82m Vertical distance45-95m
Transmission Mechanical clutch Mechanical clutch
Tank volume 8(7 ,6)m³ 8(7 ,6)m³
Single tank spraying area 200—800㎡ 200—800㎡
Single tank spray thickness 1—5cm 1—5cm
Model KKP-80152(KKP-80172)
Power part The total power is 152kw (or 172kw): pumping power-132kw, double-chain mechanical stirring power-20kw (or 40kw)
Mixing Hydraulic/mechanical, independent control can be achieved at any time
Direct range Horizontal distance48-80m,Vertical distance29-29m
Induction tube head Horizontal distance90-190m,Vertical distance38-62m
Transmission form Mechanical clutch
Tank volume 8(7 ,6)m³
Single tank spraying area 200—800㎡
Single tank spray thickness 1—5cm



Company information:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 2

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 3Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 4

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 5Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 6

Cooperate Culture:
Enterprise Spirit:
Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:

Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace

Exhibition:

Bauma Shanghai 2018

Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 7Hydraulic 60kw Diesel Grass Seeding Machine 800m2 Soil Spraying 8

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
