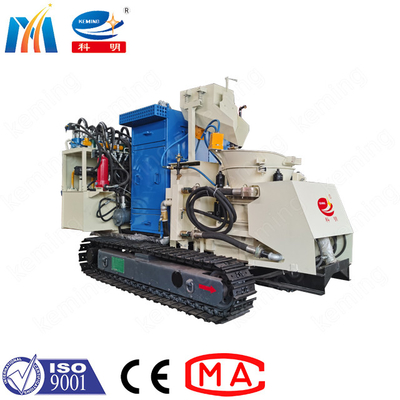

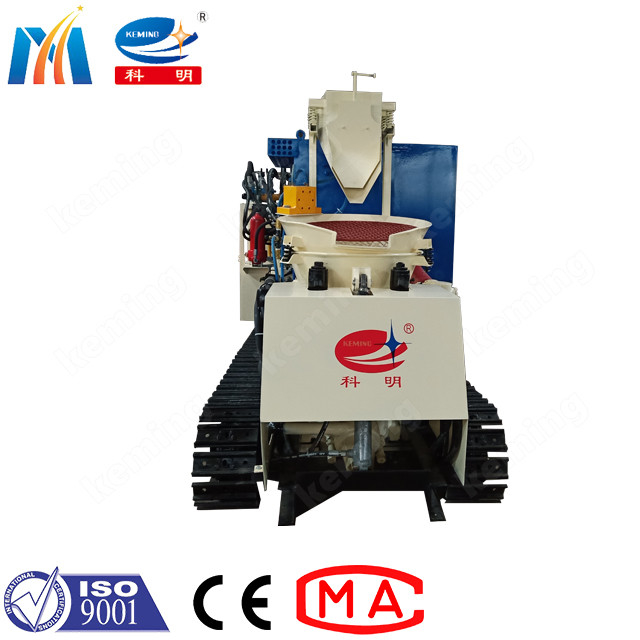

Hydraulic Remote Dry Shotcrete Machine 22Kw Concrete Gunite Machine

Convenient Move Full Hydraulic Remote 300m Conveying Distance Concrete Shotcrete Machine Dry Gunite Machine

Introduction:

The PS6IL-J Full hydraulic concrete spraying machineuses the rotor-type working principle and is fully hydraulically controlled. By increasing the lubrication and hydraulic compression of the friction plate, to improve the sealing performance, reduce the ineffective air consumption, and realize the concrete spraying for long-distance transportation, reduce the labor intensity, and the setting of the dust removal system effectively reduces the dust concentration at the spraying operation site.

It has the advantages of quick operation by the on-site operator, less wear of moving parts, high degree of automation, and low cost of use.

Features:

PS6IL-J Full hydraulic concrete spraying machine is a new type of concrete spraying equipment for tunnel and mining that uses hydraulic system to realize self-movement, concrete spraying and automatically reduce spraying dust emissions.

1. High degree of automation, walking, spraying, dust removal and automatic turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.

2. The whole set of equipment has only one motor, which greatly shortens the wiring and auxiliary time of the motor before and after the spraying operation.

3. The friction plate is automatically pressed hydraulically.

4. The friction plate and rotating liner are automatically lubricated.

5. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.

6. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

7. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.

8. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted; the key components are optimized and designed to achieve long-distance spraying operations.

9. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

Specification:

Certification :

In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Company information:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.

Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Achievements: Our company has obtained more than 20 national invention patents and many awards.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Exhibition:
Bauma Shanghai 2018

FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.

If there is any other questions abou tour machines and price, pls feel free to contact us !
