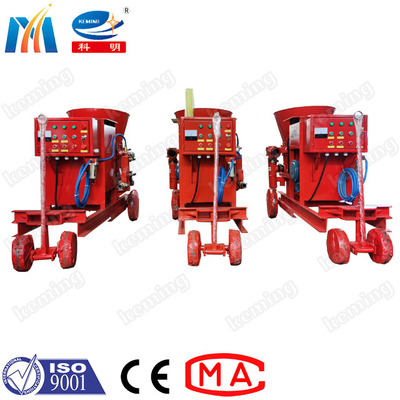

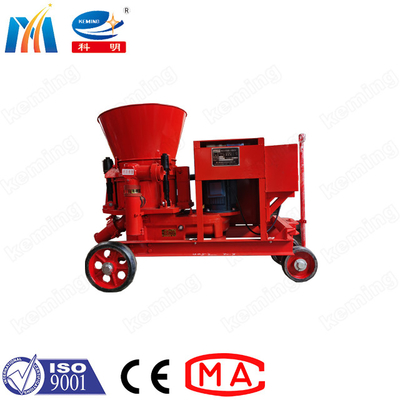

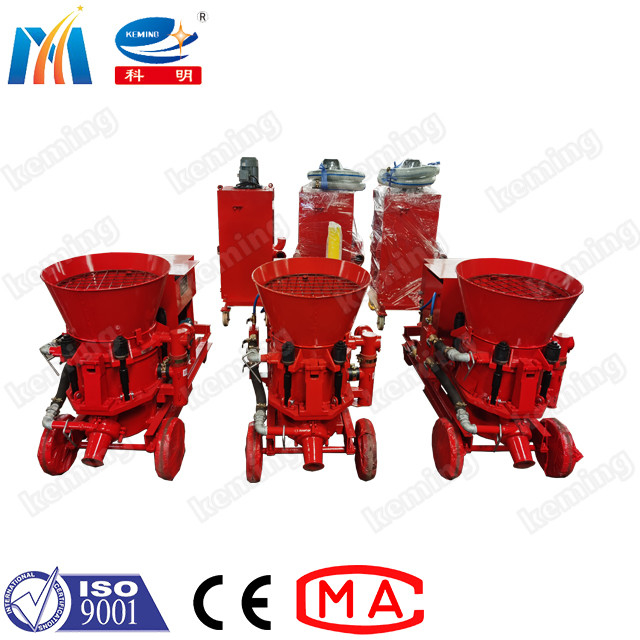

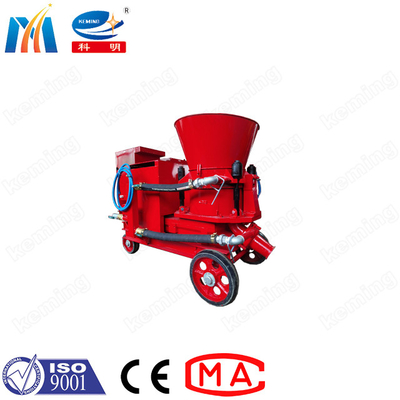

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector
Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector

Large Image :  Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KPZ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/P, D/A, D/A, D/P, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Application: Refractory Project Keywords: Shotcrete Machine
Type: Electric Driven Machine Color: Customized
Certification: CE, ISO, MA Condition: New
Dimension(l*w*h): Vary With The Model Weight: Vary With The Model
Warranty: 12 Month Product Name: Refractory Shotcrete Machine
High Light:

Coal Mine Refractory Shotcrete Machine

,

Coal Spraying Refractory Shotcrete Machine

,

Electric Driven Refractory Shotcrete Machine

China KPZ Series Refractory Shotcrete Machine With Dust Collector For Coal Mine Spraying



Product description:

The KPZ series refractory shotcrete machine has the characteristics of reasonable structure, stable performance, convenient operation and maintenance, and long service life. It is widely used in refractory materials, tunnels, culverts, subways, hydropower projects, underground projects, and high marsh mine roadway in coal mines spray construction work.



For this series refractory shotcrete machine are mainly for refratory spraying project.

It has reasonable structure, humanized design, reliable performance, convenient operation and maintenance, and long service life. No dust, low noise and low rebound rate when working.



For this series refractory shotcrete machine, more spare parts can be prepared at the first time to use. Such as the rubber sealing plate, spraying tube, rotor lining plate, rubber chamber, rubber elbow and other things.



Features:

1. The KPZ series refractory Shotcrete Machine can be driven by electric motor, diesel engine, and pneumatic motor.
2. The KPZ series refractory Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, control panel, electric motor (diesel engine, or pneumatic motor) etc.
3. The KPZ series refractory Shotcrete Machine have advanced technology, compact structure, convenient operation, stable performance and long service life.



Specification:

Model KPZ-4 KPZ-6
Production capacity 3.5~4.5m3/h 5.5~6.5m3/h
Max. Conveying distance(tide spray) ≤200/40m ≤150/30m
Max. Aggregate size φ20mm φ20mm
Inner diameter of conveying hose Φ42/50mm φ50/57mm
Working pressure 0.2~0.4MPa 0.2~0.4MPa
Air consumption 7-8m3/min 8-10m3/min
Feeding height 1.1m 1.1m
Rotation speed of rotor 11r/min 11r/min
Motor power 5.5kW 7.5kW
Dimension (LxWxH) 1500×820×1250mm 1580×850×1250mm
Weight 500Kg 600Kg



Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification. In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.

In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 0Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 1Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 2



Company information:

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 3



Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 4Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 5Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 6Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 7



Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.



Related machines:

Our main machines are : Shotcrete equipment, grouting equipment, mixing equipment, plastering equipment, hose pump etc.

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 8Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 9Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 10

Exhibition:

Bauma Shanghai 2018

Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 11Coal Mine Spraying Refractory Shotcrete Machine With Dust Collector 12

FAQ:

1. Q:How to pay for this order?

A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary
