5.5kw Screw Type Cement Grout Pump For House Foundation

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

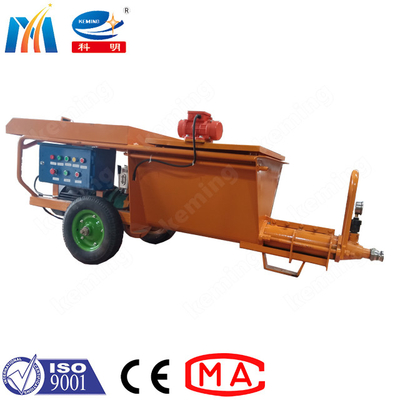

5.5kw Screw Type Cement Grout Pump For House Foundation

5.5kw Screw Type Cement Grout Pump For House Foundation
5.5kw Screw Type Cement Grout Pump For House Foundation

Large Image :  5.5kw Screw Type Cement Grout Pump For House Foundation

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Weight: 310kg Condition: New
Power Type: 5.5kw Dimension(l*w*h): 2160*900*920mm
Warranty: 1 Year After-sales Service Provided: Instruction Book, Online Support
Certification: CE, ISO, MA Color: Customized
High Light:

5.5kw Screw Type Cement Grout Pump

,

House Foundation Cement Grout Pump

,

380V Cement Grout Pump

Cement Flurry Pumping Machine Screw Type Grouting Pump Cement Grout Pump For House Foundation



Overview:



The screw type grouting pump (hereinafter referred to as the pump) adopts advanced screw pressurization technology, developed and combined with construction engineering field practice, and then improved. It has become mature and widely used in construction engineering, and has been extended to the coal industry for grouting of underground loose rock formations, consolidation or anchor hole grouting, and various slurries of fire extinguishing agents under various working conditions.

The pressure and slurry consistency can be adjust at any time when the grouting process, so that the grouting pressure and the amount of slurry can also be adjusted.

This series of pumps has the advantages of compact structure and convenient disassembly and maintenance.



Conditions of Use:

The working environment temperature of this pump is 0~40℃, and the normal working temperature of its oil temperature is 40~65℃.

The working environment of the pump does not exceed 1000m above sea level, and it should be treated as a special case if it exceeds 1000m.

When the pump is working, the whole machine should be placed on a level and solid ground.



Parameter:

Name Unit Parameter
Power supply

V

Hz

380

50

Main motor Y2-132S-4

KW

V

Hz

5.5

380

50

Power connection(single phase)

Plug

Capacitance

Cable

V

A

220

16

2G2.5*3

Power connection(single phase)

Plug

Capacitance

Cable

V

A

380

3G1*6

4G1*5

Material capacity,with pump-380V/50Hz L/min 60
Rubber material conveying tube

m

DN

20

38

Max. Horizontal pumping distance-380/50Hz m 40-60
Max. Pumping height-380V/50Hz m 15-40
Max. Pumping pressure-380V/50Hz MPa 3
Dimension mm 2160*900*920mm
Weight Kg 310



Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

5.5kw Screw Type Cement Grout Pump For House Foundation 05.5kw Screw Type Cement Grout Pump For House Foundation 15.5kw Screw Type Cement Grout Pump For House Foundation 2

Why Choose Us:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and
Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

5.5kw Screw Type Cement Grout Pump For House Foundation 3

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

5.5kw Screw Type Cement Grout Pump For House Foundation 45.5kw Screw Type Cement Grout Pump For House Foundation 55.5kw Screw Type Cement Grout Pump For House Foundation 6

Cooperate Culture:
Enterprise Spirit:
Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace.

5.5kw Screw Type Cement Grout Pump For House Foundation 75.5kw Screw Type Cement Grout Pump For House Foundation 8

Exhibition:

Bauma Shanghai 2018

5.5kw Screw Type Cement Grout Pump For House Foundation 95.5kw Screw Type Cement Grout Pump For House Foundation 10

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
