Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsFoam Concrete Pump

Mechanical CLC Blocks Concrete Hose Pump Fire Protection

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Mechanical CLC Blocks Concrete Hose Pump Fire Protection

Mechanical CLC Blocks Concrete Hose Pump Fire Protection
Mechanical CLC Blocks Concrete Hose Pump Fire Protection
video play

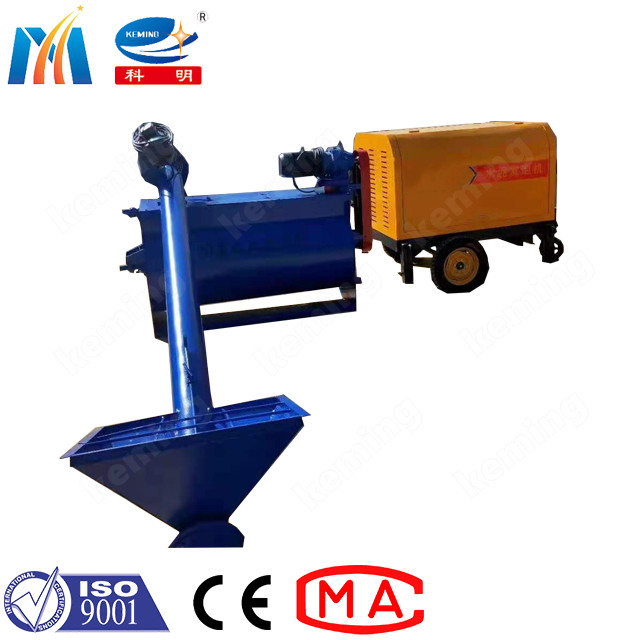

Large Image :  Mechanical CLC Blocks Concrete Hose Pump Fire Protection

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KFP series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/A, D/P
Supply Ability: 15 sets per month
Detailed Product Description
Color: Any Is Ok Feature: Light Weight
Custom Order: Permit Weight: Vary With The Model
Warranty: 1 Year Type: Hose Pump Cement Foaming
Packing: Wooden Box Product Name: KFP100 Cement Foaming Machine
High Light:

CLC Blocks Concrete Hose Pump

,

4kw Fire Protection Concrete Hose Pump

,

5m3/H Concrete Hose Pump

KFP100 Cement Foaming Mechanical Foam Concrete Hose Pump CLC Blocks With Good Fire Protection



Application:

Cement foaming machine is a construction machinery and equipment that can make a certain concentration of cement foaming agent into a foam.

Cement foaming agent itself cannot automatically become foam, it must pass the mechanical action of the foaming machine to become foam. Cement foaming machine and cement foaming agent are a technical system that cooperates with each other, and cannot function alone.

The CLC blocks are competitive with red clay bricks in pricing and offer significent savings for finished structures.



The cement foaming machine adopts intelligent control, integrating hydraulic system, dosing system, mixing system, automatic foaming system, and digital control system. The foamed cement bubbles produced are fine and uniform, and the density can be adjusted continuously according to needs. , Its technical performance and stability are well received by customers.

With the development, a large-scale cement foaming machine is available, which can be used for concrete insulation filling in a large range, faster and more efficient.



Features:

1.Concrete Foaming Machine combines feeding machine, water adding device, mixing system, foaming system, delivery system together. It is convenient to operate, automatic cement feeding, automatic mixing of cement slurry, automatic foaming of foaming agent, automatic delivery of foaming concrete.
2.The machine adopts high pressure foaming technology with good foaming performance,even,high quality,unbreakable,accurate(foaming amount can be precisely controlled within mg).
3.Delivery system adopts the most advanced pumping system of hose pump, with simple operation, low fault rate, less wearable parts, convenient maintenance,and low cost.
4.The machine shell is made of high strength and precious steel plate, which is painted at high temperature of 280℃ and has long service life.
5.The machine saves production costs and improves economical returns.Compared with similar products, the machine can save 50~100kg cement per cubic meter product.
6.The machine is the ideal equipment of foaming cement,with light weight,small size, convenient movement, high efficiency.

7. Due to its less weight CLC blocks are easy to handle and install, thus minimizing the construction costs. They also require lesser materials like cement and sand during construction for bonding.



Specification:

Model Capacity m3/h Pressure MPa Power kw Delivery distance m Squenze hose ID mm
KFP32 1-5 1 4 30/10 32
KFP50 1-8 2 5.5 100/50 50
KFP70 1-10 3 7.5 200/70 50
KFP100 1-15 4 7.5 300/100 60
KFP120 1-25 4 11 300/120 65
KFP150 1-30 4 11 400/80 75

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.

In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.

In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.

In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.

In October 2016, “KEMING” series products have been certified by CE Certification.

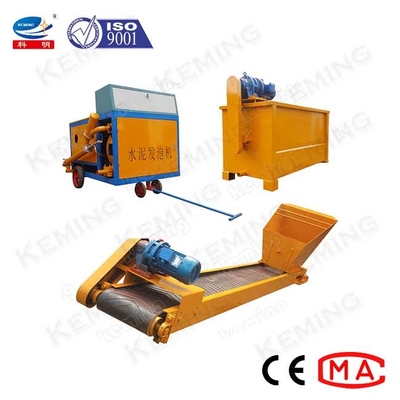

Mechanical CLC Blocks Concrete Hose Pump Fire Protection 0Mechanical CLC Blocks Concrete Hose Pump Fire Protection 1Mechanical CLC Blocks Concrete Hose Pump Fire Protection 2

Why choose us:



Mechanical CLC Blocks Concrete Hose Pump Fire Protection 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Mechanical CLC Blocks Concrete Hose Pump Fire Protection 4Mechanical CLC Blocks Concrete Hose Pump Fire Protection 5

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Mechanical CLC Blocks Concrete Hose Pump Fire Protection 6Mechanical CLC Blocks Concrete Hose Pump Fire Protection 7

Exhibition:

Bauma Shanghai 2018

Mechanical CLC Blocks Concrete Hose Pump Fire Protection 8Mechanical CLC Blocks Concrete Hose Pump Fire Protection 9

FAQ:

1. Q:How to pay for this order?

A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)

2. Q:How to place an order?

A:Both online order and offline order are acceptable.

3. Q:How about the package?

A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery. 4. Q:What is the lead time?

A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

5. Q:What should we do if there are some problems with the machine?

A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.

6. Q:Do i need technical skills to operate this machine?

A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
