| Capacity: | 5~5.5m3/h | Pressure: | 0.6Mpa |
|---|---|---|---|
| Max Aggregate: | 20mm | Main Power: | 13.2kW |
| Horz. Distance: | 200m | Vert. Distance: | 40m |
| High Light: | Guniting Concrete Spray Shotcrete Machine,Diesel Driven Shotcrete Machine,5.5m3/h Shotcrete Machine |
||
1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).
2. KPZ-5D Diesel Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, diesel engine etc.
3. KPZ-5D Diesel Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.
1. KPZ-5D Diesel Shotcrete Machine can be used for dry or half wet concrete spray construction.
2. KPZ-5D Diesel Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

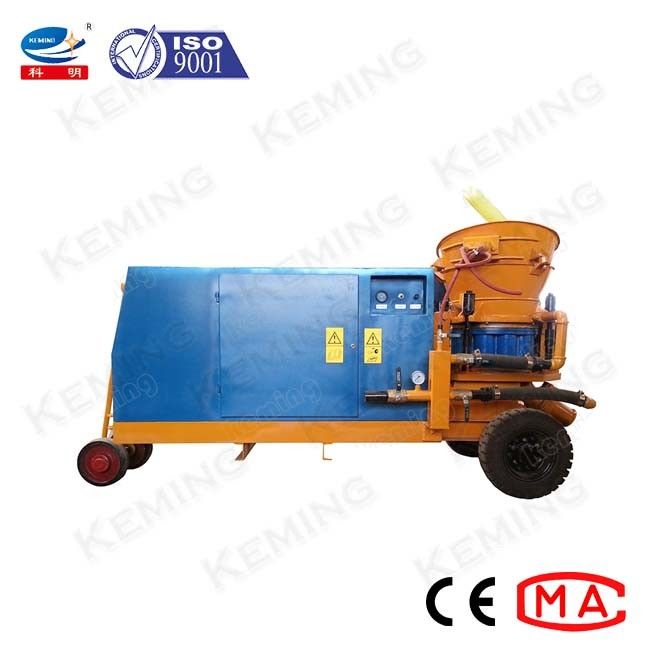

| Model | KPZ-5D Diesel Engine Shotcrete Machine |
| Capacity | 4.5-5.5 m3/h |
| Max. conveying dist. | ≤ 200m |
| Suitable mixture ratio | cement/sand and gravel=1:4~5 |
| Suitable water-cement ratio | <0.4 |
| Max aggregate size | φ15mm |
| Spraying hose ID. | φ51mm |
| Operating pressure | 0.2~0.6Mpa |
| Air consumption | 7~8 m3/min |
| Power type | Diesel engine |
| Diesel power | 13 KW (18hp) |
| Dimensions(Length×width×height) | 2400×850×1200mm |
| Total weight | 880kg |
