| Capacity: | 4~6m3/h | Aggregate Size: | 15mm |
|---|---|---|---|
| Pipe ID: | 80mm | Pressure: | 3~10Mpa |
| High Light: | 15mm Aggregate Concrete Pump,6m3/H Concrete Pump,80mm Pipe Concrete Pump |
||
1. Small size, compact structure, convenient operation and movement.
2. Full hydraulic system, stable performance,long pumping distance.
3. S tube distribution valve, pumping larger aggregates mortar/concrete.
1. Pumping wet-mixed mortar for high buildings and secondary structure construction.
2. KS-6 concrete pump is widely used for secondary construction filling, reinforcement grouting, fillback grouting and bolt supporting in floor heating engineering, roofing, high-rise building walls, reservoirs, hydropower stations, ports, docks, foundation treatment, soft foundation, tunnels, subways, mining construction etc.
|
Model
|

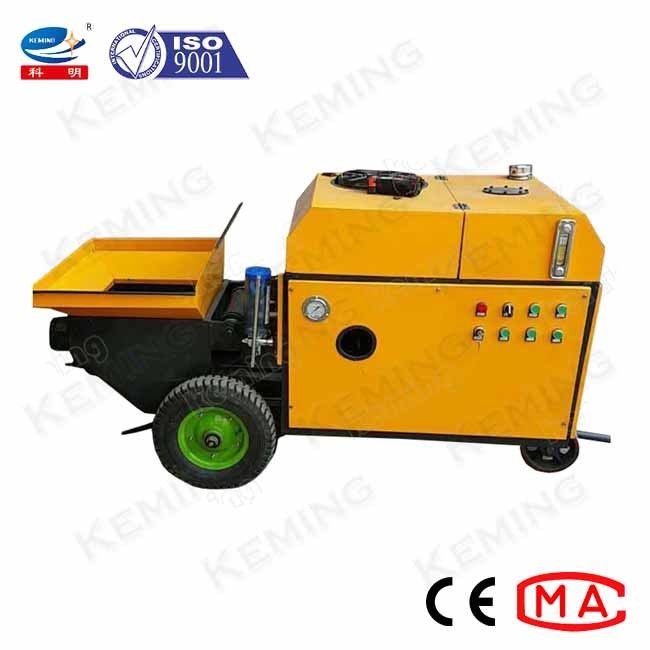

KS-6 concrete pump
|
|
Max capacity
|
5~6 m³
|
|
Working theory
|
S valve
|
|
Feeding height
|
0.7m
|
|
Max aggregate size
|
5~15mm
|
|
Max pressure: working pressure
|
15MPa: 10MPa
|
|
Hydraulic oil cooling type
|
Air cooling
|
|
Max vertical distance
|
20m
|
|
Max horizontal distance
|
50m
|
|
Delivery pipe ID.
|
80mm
|
|
Motor power
|
11kw
|
|
Weight
|
600kg
|
|
Dimensions
|
1800*700*1100mm
|
