Product Details:
Payment & Shipping Terms:
|
| Theory: | Plunger Pump | Capacity: | 0-8L/min |
|---|---|---|---|
| Pressure: | 1Mpa | Weight: | 40kg |
| High Light: | Cement Grouting Injection Pump,Plunger Grouting Injection Pump,8L/Min Cement Grouting Machine |
||
1. Single working cylinder, directional control by ball valve, long service life.
2. Small size, light weight, easy maintenance, easy movement.
3. Manual grouting, controllable flow.

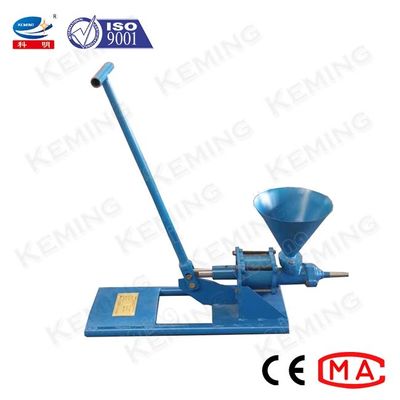

SDB manual grout pump is mainly used for delivery or pressure grout of cement slurry and other fluids, leakage maintenance of bridge, house or other small area.
|
Model
|
SDB Manual Pump
|
|
Capacity
|
0~8 L/min
|
|
Max. Pressure
|
1MPa
|
|
Cylinder Dia.
|
110mm
|
|
Piston Stroke
|
42mm
|
|
Inlet Dia.
|
25mm
|
|
Outlet Dia.
|
25mm
|
|
Weight
|
40kg
|
|
Dimensions (LxWxH)
|
980x290x590mm (customer require)
|
