Aggregate 5mm 1.5Mpa 3500L/H Industrial Hose Pump

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

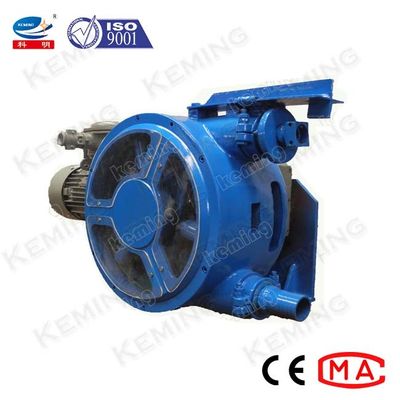

Aggregate 5mm 1.5Mpa 3500L/H Industrial Hose Pump

Aggregate 5mm 1.5Mpa 3500L/H Industrial Hose Pump
Aggregate 5mm 1.5Mpa 3500L/H Industrial Hose Pump

Large Image :  Aggregate 5mm 1.5Mpa 3500L/H Industrial Hose Pump

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE
Model Number: KH38B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 10~30 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Capacity: 2000~3500L/h Pressure: 1.5Mpa
Motor: 2.2kW, 3KW, 4KW Aggregate: 5mm
High Light:

3500L/H Industrial Hose Pump

,

1.5Mpa Industrial Hose Pump

Widely Used High Efficiency Concrete Peristaltic Industrial Hose Pump For Sale ​

Cement Mortar Pump Features:

  • 1. No contact between product and mechanical parts.
  • 2. Able to pump products with solid parts inside.
  • 3. Easy maintenance,low-cost,short down time.
  • 4. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
  • 5. High vacuum, strong self-suction capacity.
  • 6. Convenient maintenance, less wearable parts (except extruded hose).

Cement Mortar Pump Application:

  • 1.Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.
  • 2.Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.
  • 3. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.
  • 4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
  • 5. Paper industry: paper pulp, liquid sulfur.
  • 6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
  • 7. Oil industry: drilling fluid,crude oil.
  • 8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
  • 9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
  • 10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.

Technical Parameters:

Model
KH38B Cement Mortar Pump
Output
2000~3500 L/h
Rated pressure
1.5 MPa
Rev.
40~70 r/min
Hose length
1150 mm
Max. particle dia.
5 mm
Max. suction dist.
4 m
Motor power
2.2/ 3/ 4 KW
Reducer type
Gear reducer or Cycloidal reducer
Note:
Driven power could be electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
