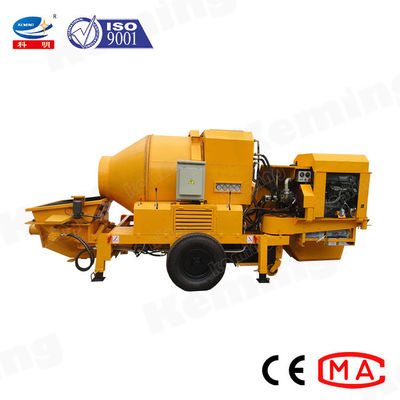

Mortar Conveying Mini Concrete Pump Machine Long Spraying Distance For Pouring

Basic Information
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE
Model Number: KMB
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 20~30 work days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detail Information
Capacity: 4~30m3/h Aggregate Size: 15~30mm
Pipe ID: 65~125mm Pressure: 3~10Mpa
Name: Mini Concrete Pump Machine Certification: CE
High Light:

concrete mixer pump

,

mini concrete pump machine


Product Description

Portable Small Concrete Pump Diesel Driven Environmental Flexible Movement

Concrete Pump Features:

* Full Hydraulic Mini Shotcrete Pump Machine

* high efficiency: full hydraulic pumping technic, reliable performance.

* long spraying distance: 150m horizontally and 80m vertically.

* continuously adjustable flux and accelerator adding volume.

* low fitting consumption, long service life of wearing parts.

* flexible movement, convenient operation and maintenance.

Concrete Pump Application:

* convey fine aggregate concrete and mortar for high buildings.

* grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.

* spray plain concrete and fiber concrete in engineering construction.

* convey and spray refractory and thermal insulation material.

* spray afforestation soil in ecological environment construction.

* pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.

Concrete Pump Parameters:

Items Unit Parameters
KMB-40 KMB-30 KMB-20 KBS-8 KMB-6
Capacity m3/h 25~35 20~25 10~15 6~7 4~6
Max. aggregate size mm 30 20 20 20 15
Delivery pipe mm DN125/DN100 DN125/DN100 DN125/DN100 DN100/DN80 DN80/DN65
Max. dist. horizontally m 300 300 250 150 50
vertically m 100 100 80 60 20
Diesel engine kw 75 45 36 36
Motor power kw 55/45/22 37/30/22 22 22 15/11
Output pressure Mpa 8~10 6~8 5~8 5~8 3~5
