22kw Concrete Shotcrete Machine Static Small Concrete Pump 3 - 8m3/H Capacity

Basic Information
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE,MA
Model Number: KBS-8A
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~20 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Detail Information
Capacity: 3~8m3/h Pressure: 0.4~0.6Mpa
Max Aggregate: 15mm Main Power: 22kW
Horz. Distance: 400m Vert. Distance: 150m
High Light:

concrete spray shotcrete machine

,

pneumatic shotcrete machine


Product Description

Used Stationary Mini Keming Concrete Mortar Machine Static Small Concrete Pump

Shotcrete Machine Parameters:

Model

KBS-8A hydraulic shotcrete machine
Max. theoretical capacity
m³/h
12
Working capacity
m³/h
3-8
Max. system pressure
Mpa
16
Working air pressure
Mpa
0.4-0.6
Max. aggregate diameter
mm
15
Max. theoretical vertical delivery dist
mm
150
Max. theoretical horizontal delivery dist.
mm
400
Total weight
Kg
2600
Dimensions
mm
3800*1400*1730
Main motor power
KW
22
Voltage
V
380
Hopper volume
0.4
Concrete slump
cm
12-18
Dust concentration around
mg/m³
<6
Feeding height
mm
1150
Oil tank capacity
L
180
Rebound rate
%
≤10

Shotcrete Machine Features:

1. This machine has advanced technology, complete functions, large internal space and convenient maintenance.

2. The hydraulic system adopts the mature hydraulic valve block with sensitive and reliable valves; The main oil pump adopts a manual variable pump, which can be manually adjusted to achieve continuous adjustment of injection volume.

3. The electrical part sets a variety of automatic protection modes in the control program, which replaces the complicated relay circuit, featuring the simplest operation, lowest failure rate and highest reliability.

4. Glasses plate and cutting ring (with automatic compensation device) adopts hard alloy with imported wear-resistant electrode, featuring anti-wear, small resistance, better material suction performance.

5. Large-capacity oil tank and forced air cooling with large flow rate can control the oil temperature of the system within a reasonable range, maximizing the service life of the system.

6. As for mixing system, the seal and bearing adopt a dual independent sealing structure, which can eliminate slurry leakage and reduce the possibility of damage of hydraulic motor.

7. Main lubrication points are automatically or manually lubricated, which effectively extends the service life of vulnerable parts.

Shotcrete Machine Application:

KBS series concrete pump is a kind of S-tube valve concrete pump driven by electric motor. With reliable system, low breakdown rate, convenient maintenance, this pump is widely applied in hydraulic engineering, electric power engineering, railways, highways, tunnels, bridges and culverts, ports, mines, high buildings, national defense engineering and so on.

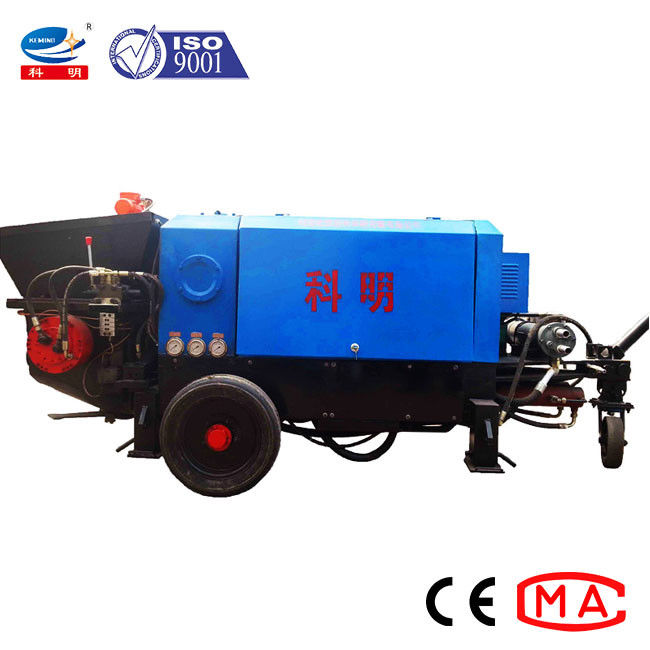

22kw Concrete Shotcrete Machine Static Small Concrete Pump 3 - 8m3/H Capacity 022kw Concrete Shotcrete Machine Static Small Concrete Pump 3 - 8m3/H Capacity 1
