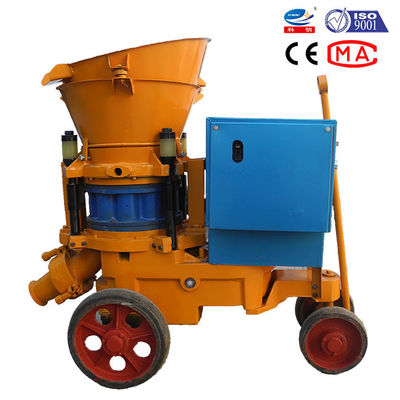

KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity

KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity
KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity

Large Image :  KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE,MA
Model Number: KPZ-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~20 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Detailed Product Description
Capacity: 3~3.5m3/h Pressure: 0.6Mpa
Max Aggregate: 20mm Main Power: 4kW
Horz. Distance: 200m Vert. Distance: 40m
High Light:

concrete spray shotcrete machine

,

pneumatic shotcrete machine

High Quality Dry Type Electric Refractory Spraying Concrete Spray Machine

Shotcrete Machine Parameters:

Product type
KPZ-3 Dry Shotcrete Machine
Capacity
3m3/h
Conveying dist. max.
≤ 200m
Suitable mixture ratio
cement/sand and gravel=1:3~5
Suitable water and cement ratio
≤0.4~0.45
Aggregate size max.
φ10mm
Conveying pipe ID.
φ50mm
Operating pressure
0.2~0.4Mpa
Air consumption
5~6 m3/min
Material feeding height
1.1m
Power type
Electric Drive
Motor power
4 KW
Dimensions(Length×width×height)
1400×780×1020mm
Total weight
350kg

Shotcrete Machine Features:

1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).

2. KPZ-3 Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box etc.

3. KPZ-3 Dry Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Application:

1. KPZ-3 Dry Shotcrete Machine can be used for dry or half wet concrete spray construction.

2. KPZ-3 Dry Shotcrete Machine are widely used in the tunnel, refractory ,culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity 0KPZ-3 Refractory Spraying Concrete Shotcrete Machine 3 - 3.5m3/H Capacity 1
