Product Details:
Payment & Shipping Terms:
|
| Theory: | Piston Pump | Capacity: | 60L/min |
|---|---|---|---|
| Pressure: | 4Mpa | Motor: | 5.5KW |
| High Light: | hydraulic cement grout pump,cement injection grouting pump |
||
|
Model
|

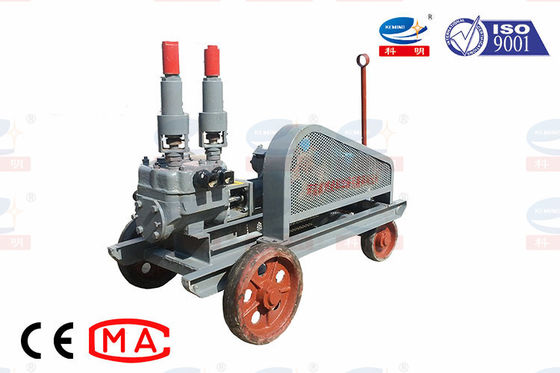

KGB piston pump
|
|
Rated output
|
3.6 m3/h
|
|
Rated pressure
|
4 Mpa
|
|
Reciprocating times
|
85/min
|
|
Motor power
|
5.5KW
|
|
Volumetric coefficient
|
≥92%
|
|
Pump efficiency
|
≥84%
|
|
Piston diameter
|
75mm
|
|
Piston stroke
|
85mm
|
|
suction hose diameter
|
38mm
|
|
Discharge hose diameter
|
32mm
|
|
Weight
|
210kg
|
|
Dimension
|
1500×500×700mm
|
1. KGB is a single Cylinder Double-action Piston Pump
2. KGB Piston Pump has high efficiency, reliable performance, long service life.
3. It has simplified structure, light weight, flexible movement, convenient operation and maintenance.
1. KGB Piston Pump can be used to grout mortar, cement paste, slurry and other liquid (particle size ≤ 3mm).
2. It is widely used in tunnels, coal mine, bridges and dams, building foundation, and other underground projects.
