Product Details:
Payment & Shipping Terms:
|
| Output: | 110~120m2/h | Pressure: | 2Mpa |
|---|---|---|---|
| Max Aggregate: | 4mm | Spraying Distance: | 15m/10m |
| Main Motor: | 4kW | Air Compressor: | 0.26 M3/min |
| High Light: | cement plastering machine,construction plastering equipment |
||
|
Model
|
KLW-120 Plastering Machine
|
|
Capacity
|
100~120m2/h (mortar)
200~3002/h (putty)
|
|
Motor power
|
4kW
|
|
Output pressure
|
2Mpa
|
|
Delivery dist.
|
15m/10m
|
|
Max. aggregate size
|
4mm
|
|
Water: cement:sand
|
0.7-1:1:3
|
|
Hopper volume
|
35L
|
|
Delivery pipe
|
32mm
|
|
Air hose
|
13mm
|
|
Air compressor
|
0.26m3/min
|
|
Weight
|
200kg
|

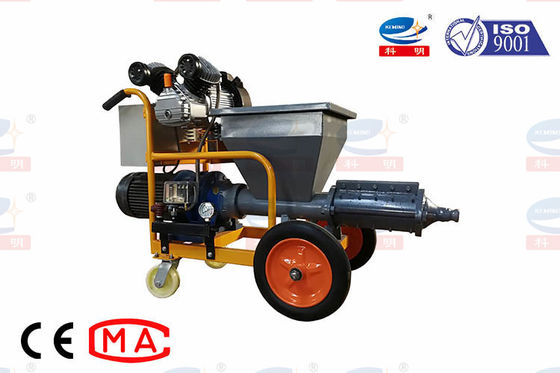

1. KLW-120 plastering machine is a high-pressure screw type cement mortar plastering machine.
2. Low noise, high pressure, high capacity, high efficiency, reliable performance, long service life.
3. Small size and light weight, flexible movement, convenient operation and maintenance.
1. KLW-120 plastering machine can be used for building mortar conveying or pressure grouting for reservoir, hydropower, dam, port, dwarf etc.
2. It can be used to spray ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar, or spray fluid materials, such as thermal insulation material of walls, refractory material, fire-proof material, water-proof material, acoustic material etc.
