Product Details:
Payment & Shipping Terms:
|
| Capacity: | 75L/min | Pressure: | 8Mpa |
|---|---|---|---|
| Motor: | 11KW | Option: | Diesel/Electric |
| High Light: | cement injection grouting pump,cement grouting equipment |
||
|
Model
|
KBW-70 grouting pump
|
|
Capacity (L/min)
|
75
|
|
Cylinder number (piece)
|
2
|
|
Cylinder diameter (mm)
|
80
|
|
Piston stroke (mm)
|
75
|
|
Pressure (MPa)
|
8
|
|
Motor power (KW)
|
11
|
|
Input speed (r/min)
|
1440
|
|
Suction hose ID. (mm)
|
64
|
|
Discharge hose ID. (mm)
|
38
|
|
Maximum suction height (m)
|
2.5
|
|
Dimensions (L x W x H) (mm)
|
1200×850×900
|
|
Weight (kg)
|
490
|

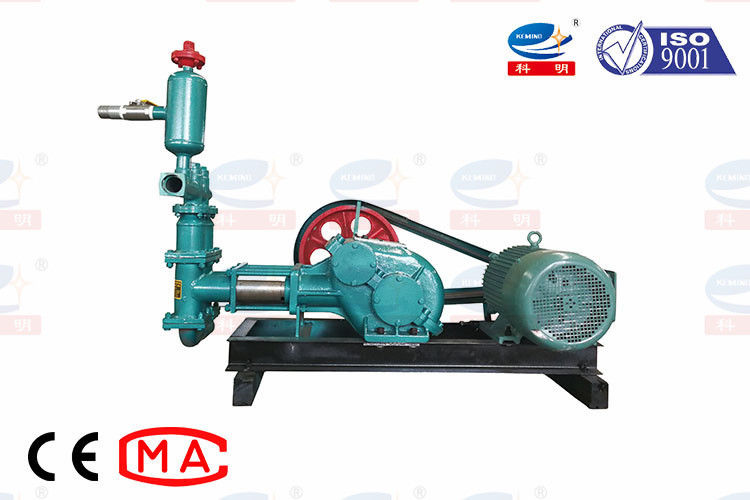

1. KBW-70 grouting pump is horizontal single-cylinder reciprocating single-action piston pump.
2. Compact structure, well sealing performance, high stability and high pressure.
3. High quality pump parts, less wearing parts, long service life, low construction cost.
4. High pump efficiency, less noise and dust, environmental operation, easy maintenance.
1. KBW-70 piston pump is widely used for cement/mortar grouting in roads, bridges, dams, national defense, mines and other construction projects.
2. KBW-70 piston pump can be used to grout mortar in prestressed component engineering, vertical and horizontal conveying of mortar in building construction, cement grouting maintenance in sand land, blast furnace, cement pavement, highway and other projects.
