KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment

Certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

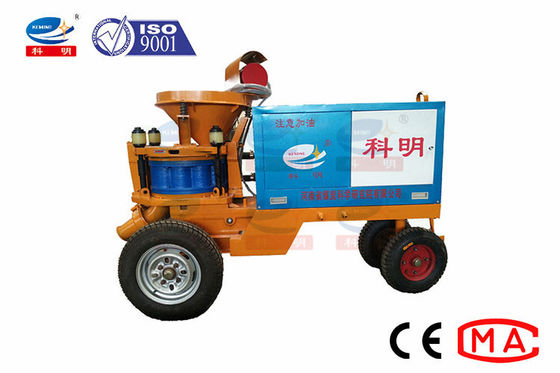

KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment

KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment
KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment

Large Image :  KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment

Product Details:

Place of Origin: CHINA
Brand Name: KEMING
Certification: CE,MA
Model Number: KSP-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 5~10 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Detailed Product Description
Capacity: 6m3/h Pressure: 0.6Mpa
Max Aggregate: 20mm Main Power: 7.5kW
Horz. Distance: 35m Vert. Distance: 15m
High Light:

wet shotcrete equipment

,

portable shotcrete machine

KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment

Shotcrete Equipment Parameters:

Model
KSP-7 Shotcrete Machine (electric motor)
Capacity
7m³/h
Conveying distance
35m(WET)/200m(DRY)
Max. aggregate size
15mm
Concrete slump
8~15cm
Conveying Pipe ID.
51mm/64mm
Rebound rate
≤10%(on average )
Rated working pressure
0.3-0.6Mpa
Air consumption
9-10m³/min
Motor power
7.5kw
Max. Pump discharge of accelerator
35-200L/h
Voltage rating of accelerator
0.6Mpa
Voltage
380V/660V
Dimension
2050*950*1180(mm)
Weight
1200kg

Shotcrete Equipment Features:

1. KSP-7 Rotor Type Wet Shotcrete Machine for Sale

2. KSP series wet shotcrete machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.

3. concrete mixture gets well mixed, water and cement ratio is accurately controlled.

4. quicker cement hydration, fewer dusts, lower rebound rate, good mixing uniformity and high concrete strength.

5. reasonable structure, stable performance, convenient operation and maintenance, long service life.

6. KSP-5,KSP-5D,KSP-7,KSP-7D,KSP-9,KSP-9D are optional models, customized model is available.

Shotcrete Equipment Application:

1. for spraying half wet or wet concrete.

2. widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.

KSP-7 Construction Wet Mix Shotcrete Machine Wet Shotcrete Equipment 0
