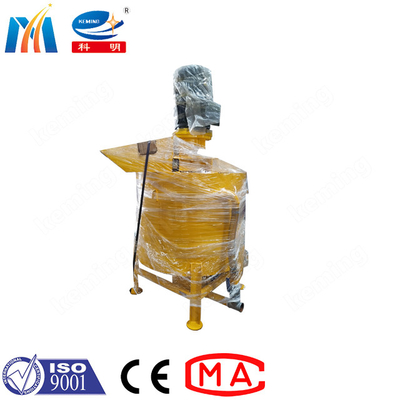

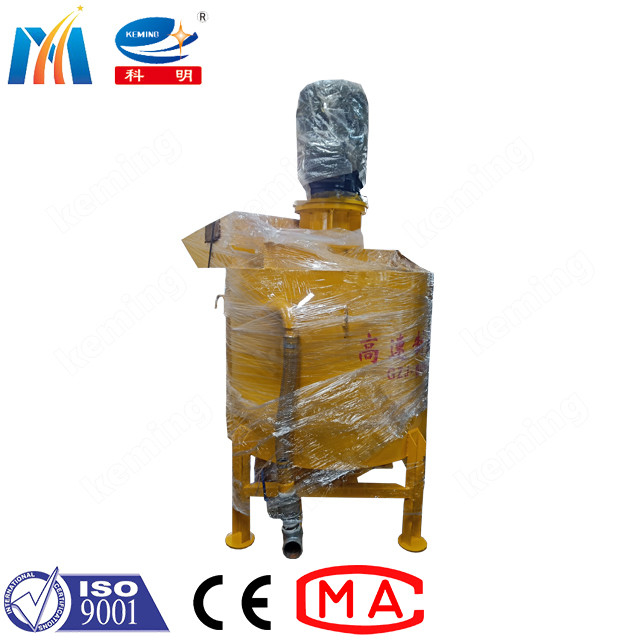

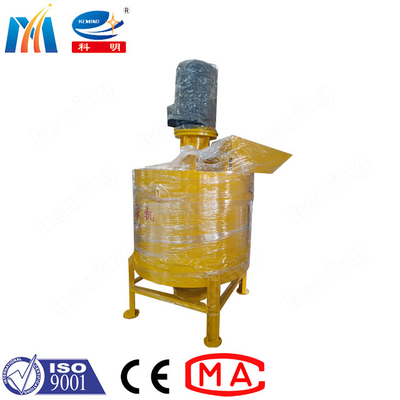

Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min

Certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KGJ 600L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union, D/P, D/A, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New Reclaiming Capacity: 250-400L
Outline Dimension: Vary With The Model Mixing Power: 4 Kw
Speed Of Mixing Drum: 960-1440 R/min After-sales Service Provided: Instruction Book, Online Support
Warranty: 12 Month Color: Customized
Weight: Vary With The Model Product Name: Grouting Mixer
High Light:

Electrical Engine Grout Mixing Machine

,

400L Slurry Grout Mixing Machine

,

Grout Mixing Machine 1440r/Min

KGJ 600L Cement Grout Mixer Electrical Engine Grout Mixing Machine For Foundation Grouting Project



Application:

1. The machine is mainly used to make cement grout.
2. It can be equipped with grout pump and used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.



KGJ-600XS high-speed grout mixer is a special equipment for slurry preparation, which is better than fast grout mixing machine. It is mainly used in hydropower, railway, transportation, construction, mining and other industries to mix cement, bentonite, etc. with water and its additives and quickly form a slurry. The machine adopts high-speed strong vortex double-force circulation, multiple shearing and simultaneous tearing the crushed solid and the fluid is highly dispersed and mixed for pulping, and has pumping capabilities. Compared with ordinary grout mixing machines and blade mixers, it has the characteristics of faster pulping speed and more uniform slurry mixing. It is one of the key equipment of large-scale grouting stations.



Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 0

Features:

1. KGJ series has high grout making speed, high efficiency, large volume, suitable for all kinds of grouting projects.
2. The machine adopts turbo pump to make grout, and high-speed centrifugal mixer to ensure uniform mixing and no precipitation.
3. The motor adopts vertical installation with well sealing effect and low failure rate.
4. Simple structure, no wearing parts, easy maintenance.



Specification:

items model KGJ150-320 KGJ250-700
mixing barrel mixer volume 150L 250L
mixer speed 1440 r/min 1440 r/min
mixer motor 3 kw 5.5 kw
mixer dimensions 970x650x1128mm 1190x750x1220mm
  agitator volume 320L 700 L
agitator speed 33 r/min 33 r/min
agitator motor 1.5 kw 1.5 kw
agitator dimension 920x920x1593mm 1550x940x1832mm
weight 460kg 560kg



Certification:



In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 1Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 2Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 3

Why choose us:

Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 4

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 5Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 6

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.



Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 7

Exhibition:

Bauma Shanghai 2018

Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 8Uniform Slurry Electrical Engine Grout Mixing Machine 1440r/Min 9

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
