Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids

Certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

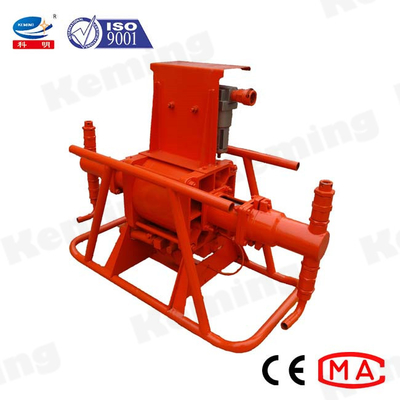

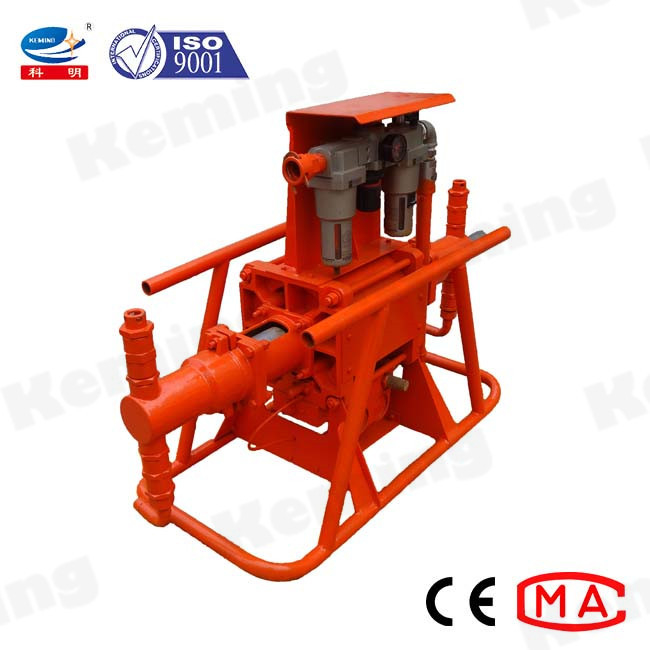

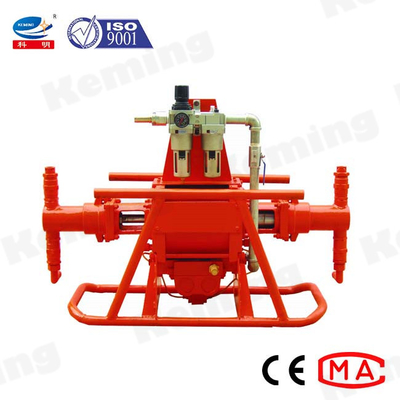

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: 2ZBQ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union, D/P, D/A, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Weight: Vary With The Model Condition: New
Power Type: Air Driven Dimension(l*w*h): Vary With The Model
Warranty: 12 Month After-sales Service Provided: Instruction Book
Certification: CE, ISO, MA Color: Customized
Application: Grouting Project Product Name: Pneumatic Grouting Pump
High Light:

Air Driven Cement Grouting Machine

,

Pneumatic Cement Grouting Machine

,

Coal Mine Cement Grouting Machine

2ZBQ Series Pneumatic Pump Air Driven Cement Pumping Machine For Grouting



Application:

1. The pneumatic pump has single or double liquid grouting function.
2. The pneumatic pump
can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
3. The pneumatic pump
is widely used for water blocking and rock consolidation in coal mine, subways, hydro-power constructions, or for pre-grouting of working surface in deep well.
4. The pneumatic pump
can work in inflammable, explosive, strong radiative, dusty sites and other bad environments with changeable temperature.



Features:

1) Compact structure, small size, high rated output pressure, large displacement, high efficiency, easy to move, easy to use and maintain;

2) Full functions: two-component slurries can be injected; chemical slurries, cement and other slurries can be injected; all cylinders work synchronously, with a fixed mixing ratio and uniform mixing; and can act as emulsion pumps, hydraulic pumps, etc., For other occasions;

3) It is safe, and can be used safely in places with flammable, explosive, and large temperature and humidity changes;

4) Use compressed air to transmit pressure signals to form a closed-loop automatic control system. Therefore, the structure is simple, the use is reliable, and there is no overpressure problem;

5) The reversing mechanism has air pressure automatic positioning performance, and there is no "self-stop" phenomenon;

6) Strong anti-impurity pollution and reliable working performance. The suction and discharge valve group can be quickly disassembled, and the maintenance is convenient;

7) The discharge volume and discharge pressure can be adjusted steplessly. And it has the ability to automatically adjust the pump slurry volume according to the predetermined grouting pressure.



Specification:

Model 2ZBQ-10/3 pneumatic pump
rated output capacit 0-14 L/min
rated output pressure 0-3 MPa
rated air pressure 0.2-0.63 MPa
reciprocating frequency 42-155 r/min
air pressure range 0.2-0.63 MPa
piston rod diameter 20mm
plunger diameter  25mm
stroke 100mm
discharge hose diameter 13mm
suction hose diameter 25mm
  air consumption ≤1 m3/min
volume efficiency 90%
weight 30kg
dimension 660x300x400mm
model 2ZBQ10/10 pneumatic pump 2ZBQ20/4 pneumatic pump
rated output capacity 10L/min 20L/min
rated output pressure 10 MPa 4MPa
rated air pressure 0.5 MPa 0.5 MPa
reciprocating drequency 30 r/min 20 r/min
air pressure range 0.2-0.63 MPa 0.2-0.63 MPa
output pressure range 0-15 MPa 0-7 MPa
plunger diameter 45mm 75mm
discharge hose diameter 13mm 13mm
suction hose diameter 25mm 25mm
air cylinder diameter 250mm 250mm
air consumption ≤1 m3/min ≤2m3/min
volume efficiency 90% 90%
stroke 120mm 120mm
weight 110kg 110kg
dimension 1100x450x580mm 1100x450x580mm



Related machines:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 0Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 1

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 2Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 3Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 4

Why choose us:

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 5

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 6Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 7Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 8

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 9
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 10Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 11

Exhibition:

Bauma Shanghai 2018

Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 12Pneumatic Air Driven Cement Grouting Machine For Corrosive Liquids 13

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions about the pneumatic grout machine or the grout pump machine price, pls feel free to contact us !
