Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump

Certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

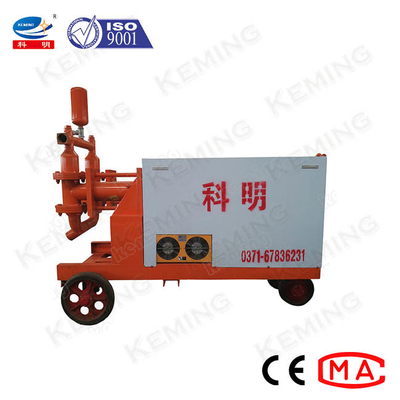

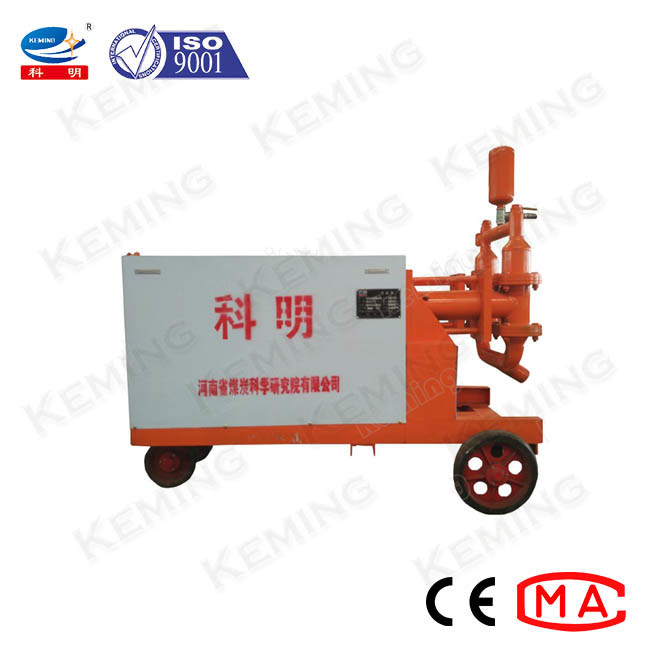

Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump

large.img.alt
large.img.alt

Large Image :  Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KBY series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/P, D/A, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Weight: Vary With The Model Condition: New
Dimension(l*w*h): 1500x920x950 Warranty: 12 Month
After-sales Service Provided: Instruction Book Certification: CE, ISO, MA
Color: Customized Application: Grouting Project
High Light:

Double Liquids Cement Slurry Pump

,

Tunnels Hydraulic Grout Pump

,

Horizontal Metallurgy Hydraulic Grout Pump

China KBY Series Double Liquids Cement Slurry Grouting Machine Hydraulic Grouting Pump



Application:

KBY Hydraulic Grout Pump is used in tunnels and construction projects for horizontal and vertical transportation of mortar or large-area spraying. In the chemical industry and the paper industry, it transports pulpy raw materials and waste materials. It is used to transport fly ash slurry in thermal power plants. It is used for grouting slope protection in national defense and civil air defense projects and mine tunnel construction. In the maintenance of highway pavement, it is used for mortar injection and expansion. In prestressed component engineering, it is used for mortar injection and expansion. In water conservancy projects, it is used to reinforce dams. In the metallurgy, steel and other industries, it is used to maintain blast furnaces and other equipment for slurry infusion.



The hydraulic grouting pump is a fully hydraulic, pressure-adjustable grouting pump. The pump uses high pressure to accurately inject easily solidified substances or mixtures (water, cement slurry, sodium silicate, etc.) into the cracks and cavities of the rock or soil to achieve the purpose of reducing water seepage and consolidating the rock and soil.



Features:

1. Adjustable grouting pressure within the rated pressure.
2. Perfect waterproof device.
3. Separated control valves.
4. Single or double fluid grouting.
5. Special suction-discharge valve and sealing structure.
6. Advanced monitoring system with double seismic pressure gauges.

7.Small size, light weight, flexible movement, reliable performance.



Specification:

Model pressure/MPa output /m3/h motor kw weight kg dimension mm
KBY1.8/12-11 0 2.3 11 400 1500x920x950
12 18
KBY3/7-11 0 4.6 11 400 1500x920x950
7 3
KBY5.4/7-15 0 7.1 15 450 1500x920x950
7 5.4
KBY7.8/4-22 0 11.4 22 450 1500x920x950
4 7.8
7 5.4
KBY3/16-22 0 4.2 22 480 1500x920x950
16 3
KBY2.1/21-22 0 3.4 22 480 1500x920x950
21 2.1
KBY3/21-30 0 4.9 30 510 1500x920x950
21 3



Related machines:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 0Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 1

Certification:

In March 1979, our company was established in Zhengzhou, Henan.

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.

In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.

In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.

In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.

In October 2016, “KEMING” series products have been certified by CE Certification.



Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 2Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 3Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 4

Why choose us:

Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 5

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.


Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 6Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 7Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 8

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 9Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 10

Exhibition:

Bauma Shanghai 2018

Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 11Double Liquids Cement Slurry Pump Tunnels Hydraulic Grout Pump 12

FAQ:

1. Q:How to pay for this order?

A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)

2. Q:How to place an order?

A:Both online order and offline order are acceptable.

3. Q:How about the package?

A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.

4. Q:What is the lead time?

A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

5. Q:What should we do if there are some problems with the machine?

A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.

6. Q:Do i need technical skills to operate this machine?

A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
